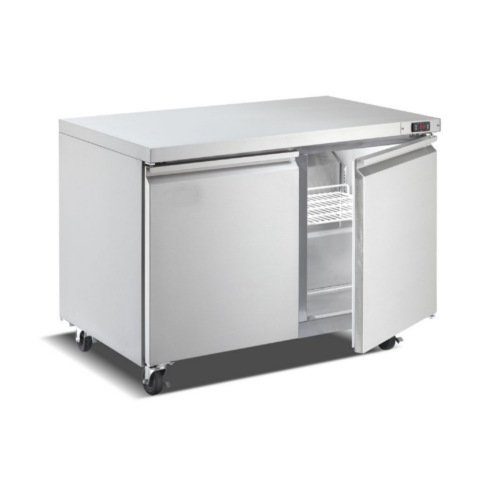

Undercounter Freezer/ Refrigerator

High-density Cyclo-isopentane Polyurethane insulated body saves energy.
Insulated partition between left freezer and right chiller compartment ensures temperature integrity of each product zone.
Refrigeration system protected from corrosion by urethane-treated evaporator coil.
Effective counter – balanced weight system self-closing door provides smooth, even, positive closure.

2 Door – 4′	2 Door – 5′	2 Door – 6′	3 Door – 7′	3 Door – 8′
MODEL	BS2DCF4/Z	BS2DCF5/Z	BS2DCF6/Z	BS3D2C1F7/Z	BS3D2C1F8/Z
Temperature°C (celsius) – Chiller – Freezer	+1 to +6 -20 to -14	+1 to +6 -20 to -14	+1 to +6 -20 to -14	+1 to +6 -20 to -14	+1 to +6 -20 to -14
External Dimension (mm)	1200 x 760 x 840	1500 x 760 x 840	1800 x 760 x 840	2100 x 760 x 840	2400 x 760 x 840
Gross Volume (Litres) – (Left) Freezer – (Right) Chiller	120 120	156 156	213 213	215 368	251 441
Voltage/Frequency (V/ Hz)	230v / 1 / 50Hz	230v / 1 / 50Hz	230v / 1 / 50Hz	230v / 1 / 50Hz	230v / 1 / 50Hz
Voltage/Frequency (V/ Hz)	220v / 1 / 60Hz	220v / 1 / 60Hz	220v / 1 / 60Hz	220v / 1 / 60Hz	220v / 1 / 60Hz
Cooling Capacity (W)	362	415	415	680	680
Wattage (W)	371 – 409	418 – 462	456 – 504	462 – 510	474 – 522
Ampere(A)	2.5 – 2.7	2.8 – 3.2	3.0 – 3.4	3.1 – 3.5	3.3 – 3.7
Refrigerant	R404a	R404a	R404a	R404a	R404a
Defrost System	Electric Heater	Electric Heater	Electric Heater	Electric Heater	Electric Heater
Weight (kg)	88	107	119	141	151
Unit For 20ft Container	22	20	14	14	8
Unit For 40ft Container	46	42	28	28	16
